iPhone 15 Pro Max Full Specs, Features & Design Overview

iPhone 15 Pro Max features A17 Pro, 6.7'' 120Hz OLED, 48MP camera, 5x zoom, iOS 17, USB-C, titanium frame, and 4422mAh battery

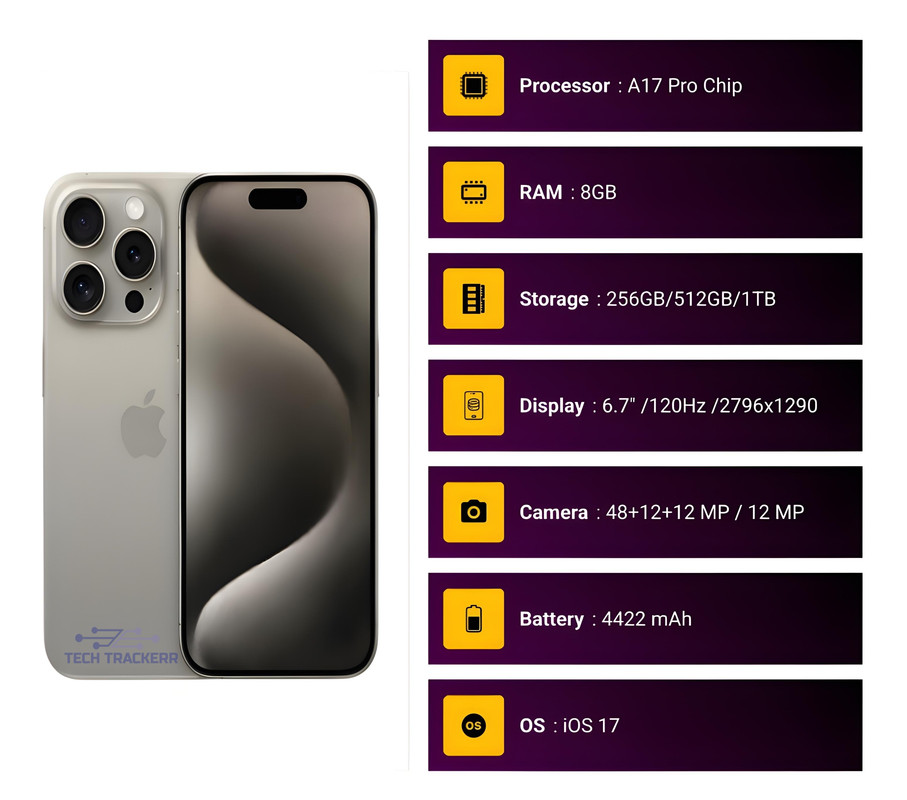

Review of the iPhone 15 Pro Max: All the Specs, Features, and Performance Information
  • Processor: A17 Pro Chip
  • RAM: 8GB
  • Storage: 256GB/512GB/1TB
  • Display: 6.7" /120Hz /2796x1290
  • Camera: 48+12+12 MP / 12 MP
  • Battery: 4422 mAh
  • OS: iOS 17

Phone Details

Network
Technology
GSM / CDMA / HSPA / EVDO / LTE / 5G
Launch
Announced
2023, September 12
Status
Available. Released 2023, September 22
Body
Dimensions
159.9 x 76.7 x 8.3 mm
Weight
221 g (7.80 oz)
Build
Glass front (Ceramic Shield) , glass back (Textured matte glass), titanium frame (grade 5)
SIM
Nano-SIM and eSIM (International) / Dual eSIM (USA) / Dual Nano-SIM (China)
Display
Type
LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 2000 nits (peak)
Size
6.7 inches (~89.8% screen-to-body)
Resolution
1290 x 2796 pixels (~460 ppi)
Protection
Ceramic Shield glass, Always-On display
Platform
OS
iOS 17, upgradable
Chipset
Apple A17 Pro (3 nm)
CPU
Hexa-core (2x3.78 GHz + 4x2.11 GHz)
GPU
Apple GPU (6-core graphics)
Memory
Card slot
No
Internal
256GB 8GB RAM, 512GB 8GB RAM, 1TB 8GB RAM
Camera
Rear Triple
●48 MP, f/1.8, 24mm (wide), 1/1.28", 1.22µm, dual pixel PDAF, sensor-shift OIS
●12 MP, f/2.8, 120mm (periscope telephoto), 1.12µm, PDAF, 3D sensor-shift OIS, 5x optical zoom
●12 MP, f/2.2, 13mm, 120˚ (ultrawide), 1/2.55", 1.4µm, dual pixel PDAF, TOF 3D LiDAR scanner (depth)
Features
Dual-LED dual-tone flash, HDR (photo/panorama)
Front: HDR, Cinematic mode
Video
4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Cinematic mode, 3D (spatial) video, stereo sound rec.
Front Video
4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS
Connectivity
WLAN
Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, hotspot
Bluetooth
5.3, A2DP, LE
GPS
GPS, GLONASS, GALILEO, BDS, QZSS
NFC
Yes
USB
USB Type-C 3.2, DisplayPort
Sound
Speakers
Yes, with stereo speakers
3.5 mm jack
No
Battery
Type
Li-Ion 4422 mAh, non-removable
Charging
Wired, 50% in 30 min (advertised) • 15W wireless (MagSafe) • 7.5W wireless (Qi)
More
Colors
Natural Titanium, Blue Titanium, White Titanium, Black Titanium
Models
●A2849 (USA)

●A3105 (Canada, Japan, Mexico, Saudi Arabia)

●A3108 (China mainland, Hong Kong, Macao)

●A3106 (other countries and regions)




iPhone 15 Pro Max Full Specs, Features & Design Overview

iPhone 15 Pro Max Launch Date and Display Specs

Learn about the iPhone 15 Pro Max, which Apple announced in September 2023. The 6.7-inch Super Retina XDR all-screen OLED display has a 120Hz ProMotion refresh rate, which makes the images look very smooth. A strong Ceramic Shield front cover protects the screen. The new A17 Pro chip with a 6-core CPU is what makes this device so powerful. There is 8GB of RAM in the phone. It has a 4422mAh Li-Ion battery that can't be removed and supports fast charging, MagSafe, and Qi wireless charging.

Pro Camera System: 48MP Triple Rear and 12MP TrueDepth Front Camera

The iPhone 15 Pro Max has a revolutionary Pro camera system on the back. It has a 48MP Main camera (ƒ/1.78), a 12MP Ultra Wide camera (ƒ/2.2), and a 12MP 5x Telephoto camera (ƒ/2.8) with a brand-new tetraprism design. This system has amazing optical zoom features. It has a 12MP TrueDepth front camera (ƒ/1.9) with autofocus that you can use for selfies and FaceTime.

Software, Storage, Build Quality, and Connectivity

The iPhone 15 Pro Max runs iOS 17, which makes it easy and smooth to use. You can get it with 256GB, 512GB, or 1TB of storage. This phone has two SIM slots: one for a physical Nano-SIM and one for an eSIM. The device is 159.9 mm tall, 76.7 mm wide, and 8.25 mm deep, and it weighs 221 grams. There are four finishes: Natural Titanium, Blue Titanium, White Titanium, and Black Titanium. The phone is also rated IP68, which means it can handle water and dust.

Performance: A17 Pro Chip and Advanced Connectivity

Wi-Fi 6E (802.11ax), GPS, Bluetooth 5.3, NFC, and a USB-C port that supports USB 3 speeds for faster data transfers are all built into the iPhone 15 Pro Max. It supports 5G and Gigabit LTE in full. The phone has a lot of sensors, like Face ID, a LiDAR scanner, a barometer, a high dynamic range gyro, and an accelerometer. The frame is made of aerospace-grade titanium, which makes it strong and light. The back is made of textured matte glass.
